| Place of Origin: | China |
| পরিচিতিমুলক নাম: | UNIMETRO |
| সাক্ষ্যদান: | CE |
| Model Number: | ULS-T |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Paper box |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 200 per month |
| Signal: | TTL, 422 | Slider Bearings: | NSK |
|---|---|---|---|
| Optoelectronic Shifting Value: | More Than 60% | Plug: | 9 Pin, 7 Pin |
| Application: | Milling, Lathe, EDMs, Wire Cut Etc |

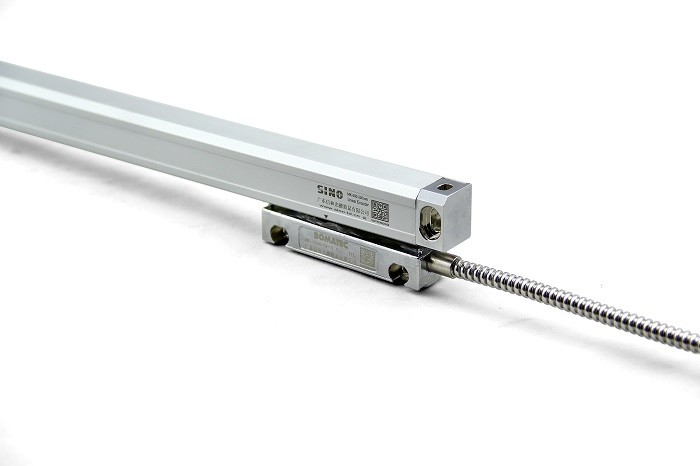

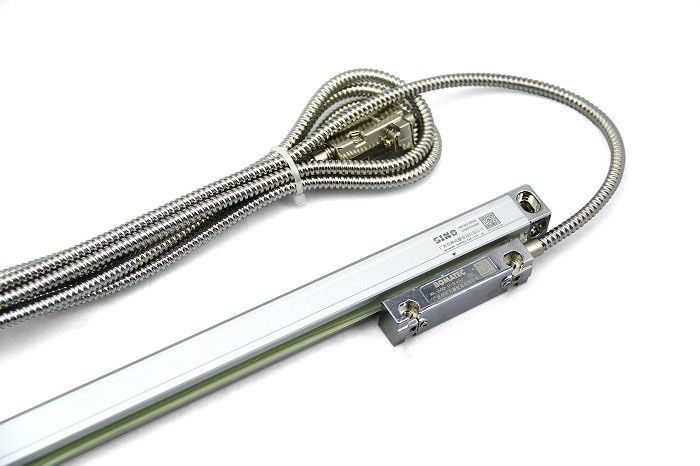

Thin Optical Linear Scale Optimized Size For Slim Smart Machine Design
Introduction
For more optimized machine design, UNIMETRO offers a special type of thin scales ULS-T, which is with only half dimension of the normal scales. The advanced design ensures the ULS-T series with the same mechanical features as the normal ones.
Features
The slide carrier of the ULS-T series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
The glass grating slideways are lapped, and NSK bearings are used to achieve smooth and accurate movement and long working life.
The plastics seals of ULS-T series scales use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lips geometry offer low slide resistance.
All glass grating transducers are individually inspected and calibrated by our in-house laser interferometer to ensure measuring accuracy comply 100% with the specifications.
The industrial standard TTL, RS-422-A and RS-485(optional, available upon request) digital signal output are available for user's choice.
User can choose the most suitable signal interface according to their cost, power consideration & EMI requirements. Standard 9 pin DSUB9 and 7 pin DIN7 connectors are available for user's choice.
