Tool Measuring CMM Fixture Kits For Roundness Tester Diameter Error Measuring

Tool Measuring CMM Fixture Kits For Roundness Tester Diameter Error Measuring

    • Tool Measuring CMM Fixture Kits For Roundness Tester Diameter Error Measuring
    • Tool Measuring CMM Fixture Kits For Roundness Tester Diameter Error Measuring
    • Tool Measuring CMM Fixture Kits For Roundness Tester Diameter Error Measuring
  • Tool Measuring CMM Fixture Kits For Roundness Tester Diameter Error Measuring

    পণ্যের বিবরণ:

    Place of Origin: China
    পরিচিতিমুলক নাম: UNIMETRO
    Model Number: UTE-1

    প্রদান:

    Minimum Order Quantity: 1
    Packaging Details: Paper box
    Delivery Time: 5 work days
    Payment Terms: T/T
    Supply Ability: 50 per month
    এখন যোগাযোগ
    বিস্তারিত পণ্যের বর্ণনা
    Supporting Tools: Milling tools, Drilling head Measuring device: Dial gauge
    End clamp: Included Tool length: Up to 150mm
    Tool diameter: Up to 25mm Rotating control: Automatic



    Tool Measuring CMM Fixture Kits Tool Roundness Tester Diameter Error Measuring



    Introduction

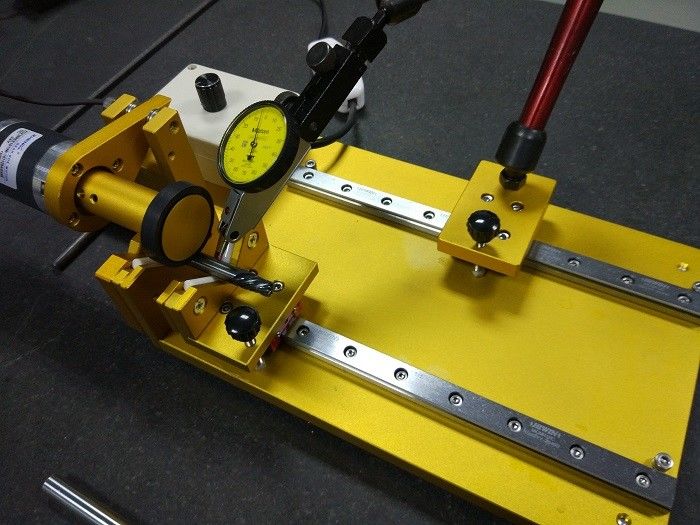

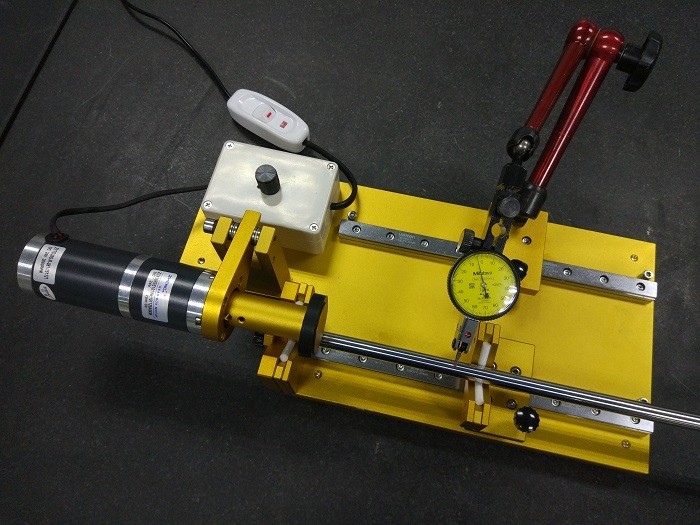

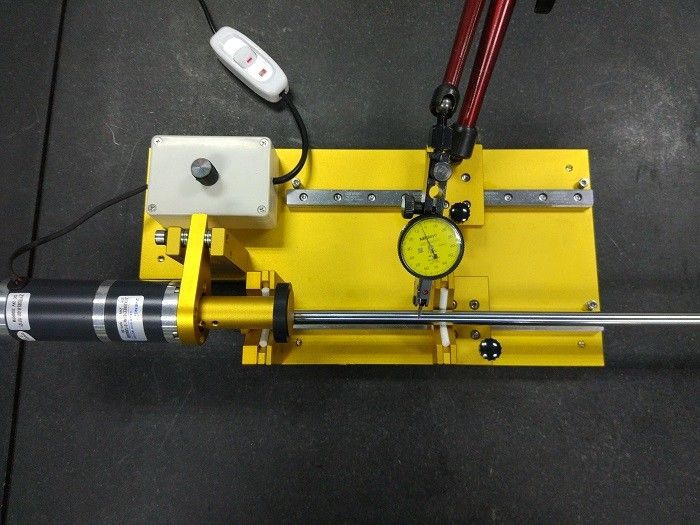

    The UTE-1 series tool testing fixture is specially design for the milling tools, drills, and long rods materials roundness measuring. It is with reasonable design and stable base, to allow users to achieve high accuracy tool measuring with extemely low cost. The UTE-1 series is using DC motor for rotating movement control and rpm adjustable, ensure more stable motion when measuring the roundness.



    Tool Measuring CMM Fixture Kits For Roundness Tester Diameter Error Measuring



    High performance linear guide way



    Tool Measuring CMM Fixture Kits For Roundness Tester Diameter Error Measuring

    The UTE-1 series tool fixture is using high performance HIWIN linear guide way, ensure the stability of the dial gauge moving and the measuring accuracy.



    High accuracy ceramic supporter



    Tool Measuring CMM Fixture Kits For Roundness Tester Diameter Error Measuring

    The V type supporter is using high accuracy ceramic material, the repeatability of the tool locating is less than 0.001mm. The ceramic material ensures the long life cycle of the products, also easy for replacement.



    Optional dial gauge and gauge fixture



    Tool Measuring CMM Fixture Kits For Roundness Tester Diameter Error Measuring

    The UTE-1 series tool fixture is standard with M8 screw hole for the gauge installing, users are able to select different brands or type of gauges or gauges fixtures, to satisfy different measuring requirement.



    Stable end clamp fixing



    Tool Measuring CMM Fixture Kits For Roundness Tester Diameter Error Measuring

    The UTE-1 series tool fixture is with end clamp fixing screws, ensures convenient adjusting the measuring length based on different types of the tools.



    High accuracy tools end supporter



    Tool Measuring CMM Fixture Kits For Roundness Tester Diameter Error Measuring

    To offer stable location of the tool during measuring process, the UTE-1 series is with adjustable spporter to the tool end side, ensures the measuring reliability.
