|Surface light transmitting:||Optic fiber||Optic structure:||Horizontal|
|Work stage dimension(mm):||450 x 150||Measuring range(mm):||250 x 150|
|Measuring accuracy:||3+L/75um (L is the measuring length, unit:mm)||Max. loading(kg):||5|

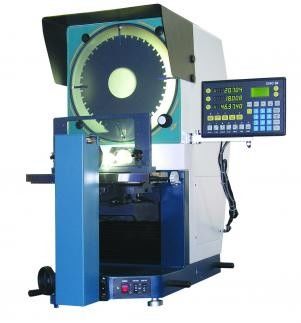

Horizontal Optical Profile Projector 400 mm Screen For Shaft Parts Measuring
The UNPJ26-400H series horizontal optical profile projector is design for general application, it is with smart design and easy operation, the Z axis uses high performance V type guide way, transmission is light and comfortable.
The contour illumination is switch from high brightness to low brightness, suitable for different parts’ measuring. High quality illumination offers clear image and precise magnification.
The surface light is using optic fiber for transmitting, small size, high brightness and easy operation. The UNPJ26-400H series horizontal optical profile projector is embedded with large projecting screen, horizontal optic design, it is the perfect measuring instrument for the shafts parts.
Screen diameter: 400mm
Rotating range: 0 - 360 degrees
Rotating angle resolution: 1’
Rotating measuring accuracy: 4’
|Work stage dimension(mm)||450 x 150|
|Measuring range(mm)||250 x 150|
|Measuring accuracy||3+L/75um (L is the measuring length, unit:mm)|
Magnification error: 0.08%
Contour light and Surface light: 24V150W halogen lamp
Surface light: 24V150W halogen lamp, reflecting device included
20℃±5℃, humidity 40%－70％RH
Working dimension (mm) : 687 x 443 x 942
